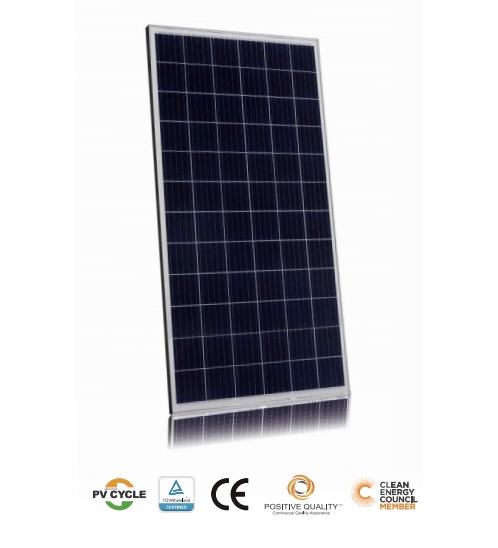

แผงโซล่าเซลล์ JINKO 325w JKM325PP-72 SOLAR PANELS

แผงโซล่าเซลล์ JINKO 325w JKM325PP-72 Polycrystalline Module

Benefits
- Limited power degradation of Eagle module caused by PID effect is guaranteed under strict testing condition (85℃/85%RH,96hours)for mass production

- With up to 280 Wp and 17.11 % efficiency, highest performing module of its kind on the market

- Excellent performance in low-light environments

- Advanced glass and surface texturing allow for excellent performance in low-light environments

- Extremely weather resistant due to approval for increased snow and wind loads: 5400 Pa snow load, 2400 Pa wind load

- No power loss thanks to improved temperature co-efficient caused by 5 busbar solar cell

Model     JKM325P-72

Mechanical

Type>>>>Poly-crystalline

Dimensions>>>>1956×992×40mm

Weight >>>> 26.5kg(58.4lbs.)

Connector >>>> MC4 Connector IP 67

Electrical

Watts (STC) >>>> 325 W

Max Power Voltage (VMPP) >>>> 38.0 V

Max Power Current (IMPP)  >>>> 8.38A

Open Circuit Voltage (VOC)  >>>>  45.9V

Short Circuit Current (ISC)  >>>> 8.96A

Module Efficiency (%)  >>>>  16.27 %

• 10 years product

• 25 years Insurance Backed Warranty
